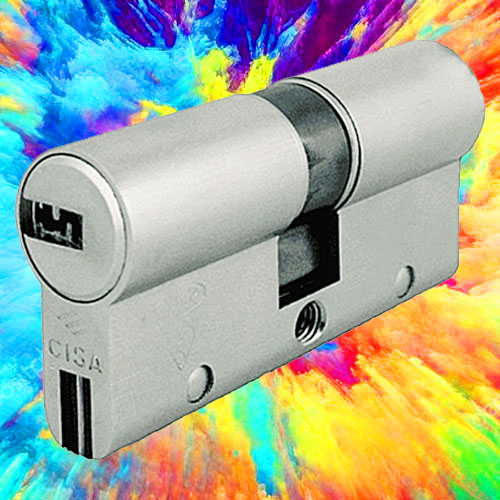

CISA Mastered Euro Cylinder 40/40

Description

Mastered Euro Cylinder 40/40

Master Key PS179

The Insurance Approved CISA Mastered Euro Cylinder 40/40 is a high security lock designed to protect both homes and businesses. It features an anti-drill, anti-pick, and bump resistant design that is recommended by British insurance companies. This cylinder lock has been tested to over 100,000 cycles for durability and is equipped with a 6 pin system for additional security. The CISA Mastered Euro Cylinder 40/40 also comes with a master key system which allows you to control access to multiple locks from one key.

This cylinder lock is ideal for use in residential and commercial settings as it meets the requirements of British Standard BS8621, meaning it has been approved by most major insurance companies. The CISA Mastered Euro Cylinder 40/40 also features a polished chrome finish which adds an extra layer of protection against corrosion and wear.

Overall, the Insurance Approved CISA Mastered Euro Cylinder 40/40 is an excellent choice for protecting your home or business from intruders. With its robust design and master key system, this cylinder lock provides maximum security while still being easy to install and maintain.

• CISA Astral MASTERED Euro Double Cylinder 80mm (40/40)
• CISA AP4 S cylinders are the ideal solution for anyone who needs a high performance cylinder.
• High protection and controlled duplication, as keys can only be duplicated by CISA
• + 40% resistance to pulling and tearing, thanks to the Snap Resistant feature, a dual-material steel core.
• High resistance to bumping (percussion), thanks to the Bump Key Power (BKP) patented device.
• High resistance to picking (tampering), thanks to the patented technology with floating drivers.
• Shape trademark registered on the key to protect AP4 S and AP3 S key duplication over time, also guarantees compatibility with the previous version of the AP3 S cylinder.

Our Patented range is the ideal product for medium to high-security applications for
residential buildings and armoured door industry where key control is very important.
It offers master keying and keyed alike options for companies, shopping malls, prisons, schools, universities and hospitals.

Security Features:
• Patented 10 pin security until 2026.
• Drill & Pick protection.
• 10 Pin Flat Key System.
• EN 1303:2005 Grade 6 Key Related Security.
• EN 1303:2005 Grade 6 Durability.
• EN 1303:2005 Grade 1 Attack Resistance.
• BS 1 Star Pending.
For a cylinder to gain a 1 star rating it must pass the criteria set out on BS EN 1303:2005 but it does not pass snapping tests. 3 star Kitemarked cylinders pass both tests, proving to withstand 5 types of attack; drilling, picking, bumping, snapping and plug extraction.

Restricted Features:
• Supplied with 2 Keys as standard.
• Available Keyed-Differ
• Keyed Alike and Master Keyed options available
• Available in a range of cylinder types and sizes.
• Double clutch as standard.
• Options include Anti-Barricade, Classroom Function and Anti-Ligature Turns.

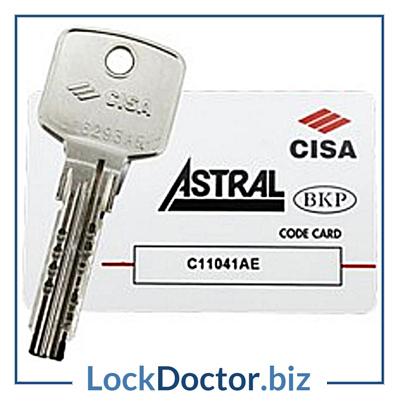

• Supplied with Registered Key Card.
The Advantage of a Patented System:
The security of any keyed system can quickly be compromised if keys are lost or not
returned. Controlling who has access to keys can be further compromised if key
blanks are available on any high street. Our Patented Euro Cylinders Series is protected by patents until 2026 and the manufacture of key blanks is restricted, making the unauthorised copying of such keys virtually impossible. Duplication of keys can only be carried out by us under a letter of authority.

THUMBTURN CYLINDERS are often found on classroom and office doors. The thumbturn allows you to lock the door from the inside while a key is needed to open the door from the outside.

COMMON SECURITY FEATURES

ANTI-DRILL
Stainless steel pins within the cylinder provide anti-drill protection where the steel from the drill bit is softer than the protective metal.

ANTI-SNAP
Anti-snap features help to prevent lock snapping (hammering the lock in a forced entry) but primarily leaves enough of the lock in working order.

ANTI-PICK
Some locks can be picked open using a hair pin or a paperclip. Anti pick locks are designed so that it is almost impossible to open the lock in that way.

ANTI-BUMP
Lock bumping is a technique used to open a lock using a special key to jolt it open. Anti-bump locks have a specially made key and more pins.

FITTING
Euro cylinders have the same dimensions and are easy to install and remove. The actuator in the centre needs to be turned with a key so that it lines up flush with the lock hole and then a screw in the frame of the door holds it in place.
1. Locate and remove the fixing screw on the side edge of the door.
2. Insert the key into one side whilst slowly turning the key to enable you to push the old cylinder out.
3. Measure the overall length of the cylinder and the dimensions either side of the centre hole.
4. With the key in the lock and the cam lined up with the cylinder, insert your new lock.
5. Secure the lock in place with the new fixing screw provided.
It is important to remember that the cylinder has an external and internal side which must be the correct way round when fitting the lock.
