Description

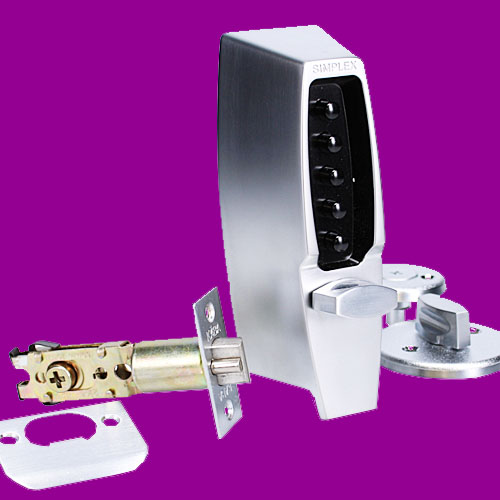

SIMPLEX 7104 Digital Door Lock
The KABA SIMPLEX 7104 Digital Lock Mortice Deadlatch is a great choice for both commercial and residential doors. This heavy-duty digital door lock features a tubular mortice deadlatch that provides secure access control. It is easily programmed via keypad without removing the lock from the door, and it has a single access code that is easy to manage for all users. The lock also includes a rim locking latch that automatically relocks when the door closes, as well as latch holdback. Additionally, it is field reversible and comes with an adjustable backset that locks automatically.
For commercial applications, this lock offers reliable security and convenience. It can be used in high traffic areas such as offices or retail stores where multiple people need access to the same space. For residential applications, this lock provides homeowners with peace of mind knowing their home is safe and secure.
Overall, the KABA SIMPLEX 7104 Digital Lock Mortice Deadlatch is an ideal solution for both commercial and residential doors due to its robust design, easy programming capabilities, single access code feature, and automatic locking mechanism.
The 7000 Series Light Commercial / Residential Lock incorporates slim line robust design and security. Utilising the Simplex code chamber with the option of Deadlatch or Deadbolt to suit any application.
The Simplex 7000 can also be used alone, or with another lock in residential applications. Optional model features include spring latch, deadbolt, key override and panic exit device. The rugged all-metal construction is weather resistant, providing added strength and durability.
- Reversible latch
- Backset adjustable
- Suits doors 35-57mm thick
- Fast code change whilst unit fitted
- Protective clutch mechanism
- Non-handed units
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
Locking Device Options:
- Deadbolt—must be manually relocked
- Deadlocking latch—relocks automatically when door closes
- Rim locking latch—relocks automatically when door closes; also has latch holdback
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Field reversible
Operation Modes:
- Pushbutton Access
- Latch Holdback (7106 only)
Economical: A cost effective access control solution
The KABA SIMPLEX 7104 Digital Lock Mortice Deadlatch is the perfect choice for commercial and residential doors. Here is a summary of its key features and benefits:
- Fully mechanical primary or auxiliary pushbutton access control
- Single access code—one easy-to-manage code for all users
- Easily programmed via keypad without removing lock from door
- Lock is field reversible to fit both right and left handed doors
- Relocks automatically when door closes
| Operation Outside | Thumbturn On Entry Of Code |
| Operation Inside | Thumbturn Free Exit |
| Passage Set | No |
| Packaging | Boxed |
| Pack Quantity | 1 |
| Width | 56mm |
| Weather Resistant | Yes |
| Codes | 1 |
| Case Depth Required | 98mm |
| Brand | dormakaba |
| Barcode | 887838707307 |
| Combination | 1,000+ |
| Code Length | 1 To 5 Digits |
| Buttons | 5 |
| Backset | 70mm |
| Door Thickness | 35mm to 57mm |
| Latch | 70mm Standard |
| Manufacturer Reference | 7104-26D |
| Handed | Reversible |
| Guarantee | 1 Year |
| Finish | Satin Chrome |
| Key Override | No |
| Holdback | No |
