Description
UNION L22070 Euro Sashcase

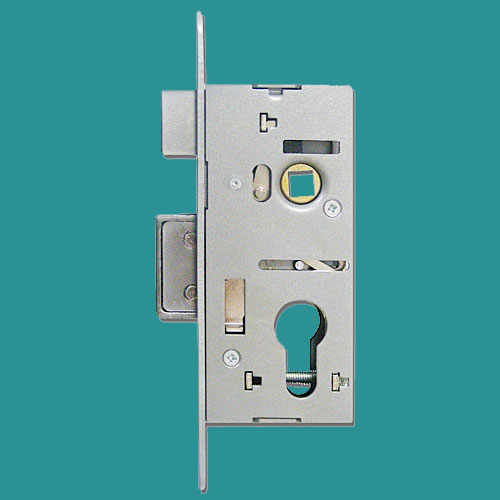

The YALE L22070 Euro Sashcase is a great choice for residential and office doors that use euro cylinders. It is a double throw latch and deadbolt case with a 36mm backset, 48mm centres, and a 54mm case depth. This sashcase is operated by a euro cylinder, which makes it ideal for both residential and commercial applications.
The YALE L22070 Euro Sashcase features a double throw deadbolt with two throws of 12mm each. This provides added security to the door as it requires two separate actions to open the lock. Additionally, this sashcase comes with a satin chrome finish that adds an elegant touch to any door.
This sashcase is also very easy to install as it comes with all the necessary hardware included in the package. It also has an adjustable latch so you can easily adjust it to fit different door sizes or thicknesses.
Overall, the YALE L22070 Euro Sashcase is an excellent choice for residential and office doors that use euro cylinders. Its double throw deadbolt provides added security while its adjustable latch makes installation quick and easy. Plus, its satin chrome finish adds an elegant touch to any door.
Features
- Suitable for metal doors
- C – One full turn of the key to lock and one full turn of the key then push down on the lever to unlock, latch bolt can also be withdrawn by key.
- Euro Profile Sash Case
- Reversible latch bolt
- Latch & Deadbolt
- Suitable for use with unsprung lever handles
Operation | C – One full turn of the key to lock and one full turn of the key then push down on the lever to unlock. |
Packaging | Bagged |
Pack Quantity | 1 |
Alias Brand | Union |

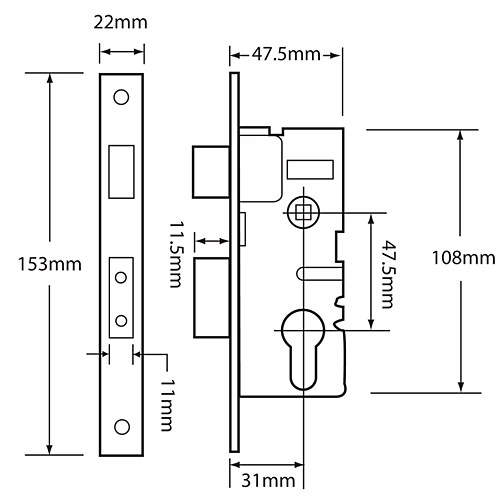

Case Depth | 54mm |
Brand | Yale |
Case Height | 115mm |
Barcode | 5055120653860 |
Case Width | 50mm |
Centres | 48mm |
Centre Case | Latch & Deadbolt |
Backset | 36mm |
Mechanism | Euro Cylinder |
Manufacturer Reference | L22070 |
Forend Width | 25.5mm |
Forend Length | 166.5mm |
Forend Finish | Satin Chrome |
Finish | Satin Chrome |
Faceplate Width | 25.5mm |
